GMS700

Purpose-built, battery-powered automated movement detection

Exceptional GNSS monitoring performance

Exceptional GNSS monitoring performance

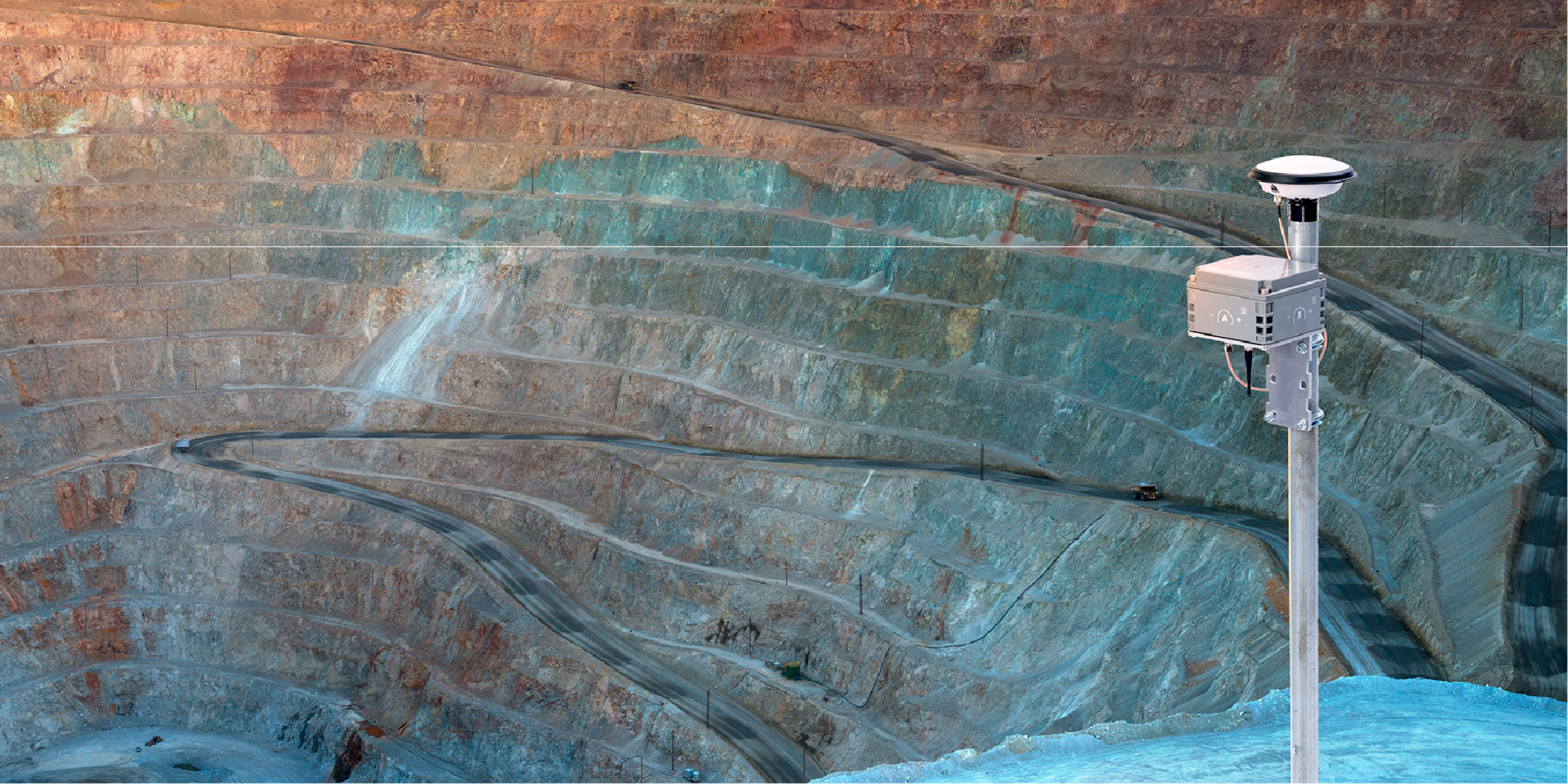

Purpose-built, battery-powered automated movement detection. Designed for rapid field deployment in slopes, open-pit mines, dams, landslides, and structures where either sun exposure is limited restricting use of the GMS800 or project duration is less than the expected 1-3 year battery life.

Features

Resources

Features

NavStar’s GMS700 combines compactness and high-precision in a GPS/GNSS sensor with a 1.35 kg, Fibreglass Reinforced Polyester 16 cm cube enclosure, making it suitable for rapid deployment on various projects while maintaining connection via Integrated Mesh or Wi-Fi radios.

With environmental sensors for temperature, input voltage, input current, charge voltage, charge current and runtime metrics, the GMS700 is designed to provide 24/7 automated monitoring data in extreme climates, from temperatures of –40°C to +60°C.

The GMS700 uses a Real-time Kinematic GNSS processing-based monitoring system consisting of one main base station and one or more GNSS Rover units. The base station is always powered and active, receiving data from as many satellites as possible. The GMS700 is fully supported and controlled by the GeoExplorer Platform for integrated monitoring projects collecting near real-time monitoring data.
